Technical Characteristics | Procedures | |||
size | 6500(L)*1900(W)*1700(H)mm | Step 1: | Automatic/Manual loading | Optional |
weight | around 2500kg | Step 2: | Dust Cleaning | Optional |
Working speed | 2-5m/minute | Step 3: | Gluing | |
Total power | Step 4: | Film Laminating | ||
Type of glue | Cold Glue (White Latex glue) |
Step 5: | Auto cutting | Optional |
Panel width | 1220mm | Step 6: | Automatic/Manual unloading | Optional |
Panel thickness | 2.5-30mm | |||
Minimum panel length | 600mm | |||
Film width | 1280mm |

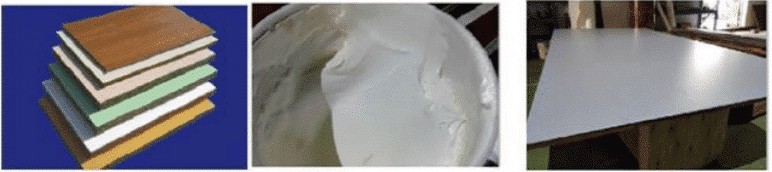

Suitable Materials:
Covering film: | pvc paper |
Glue | white latex glue |

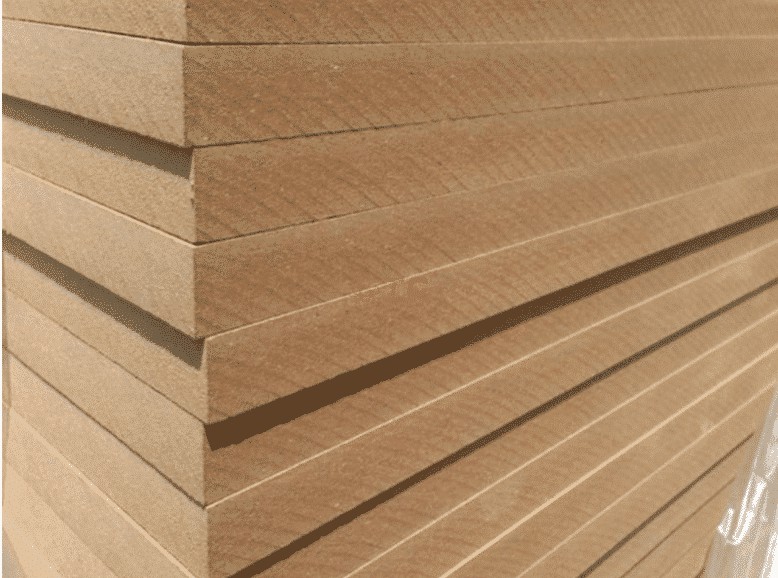

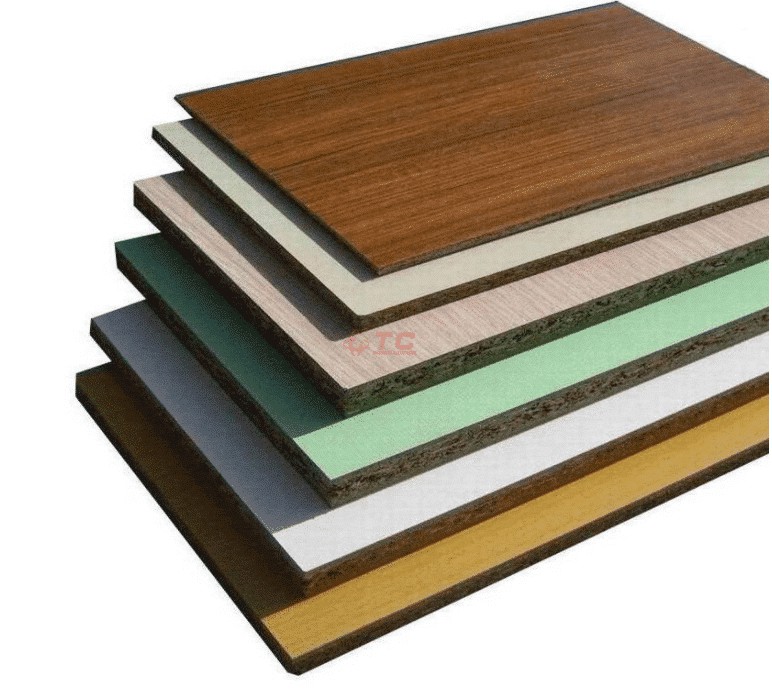

Substrate: | mdf, plywood, particle board |
