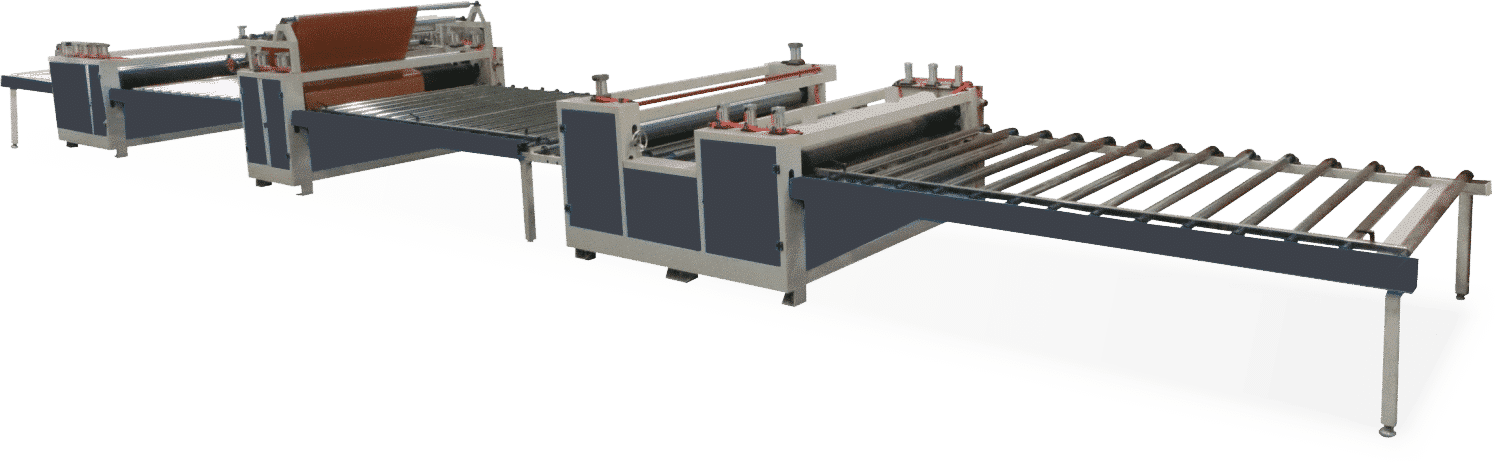

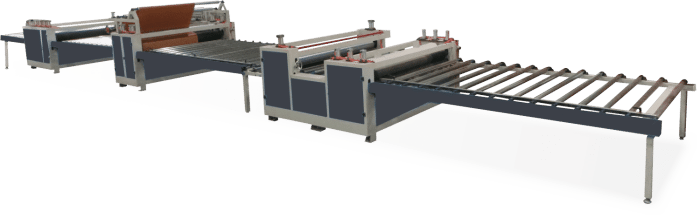

| PARAMETERS: | PROCEDURES | |||
| size | 15000(L)*1900(W)*1700(H)mm | Step 1: | Automatic /Manual loading | optional |
| weight | around 4000kg | Step 2: | Dust Cleaner Glue Spreader | |
| Working speed | 2-20m/minute | Step 3: | Heating oven | optional |
| Total power | w | Step 4: | Film Laminator | |
| Type of glue | white latex glue | Step 5: | Auto Cutting | optional |
| Material: | Step 6: | Repressure | ||
| Panel width | 1220mm | Step 7: | Automatic /Manual unloading | optional |
| Panel thickness | 2.5-30mm | Step 8: | ||
| Minimum panel length | 600mm | |||
| Film width | 1280mm | |||
Suitable Materials:
| Covering film: | pvc paper |
| Glue | white latex glue |
| Substrate: | mdf, plywood, particle board |
